Note for UCB CS267: Applications of Parallel Computers 1-12

Note_CS267

Course Website: https://sites.google.com/lbl.gov/cs267-spr2021/pre-proposal

P1: Introduction & Overview

Note:

load imbalance = inefficient
Simple parallel problem: : dividing big problem to many processors.
Classification of HPC:
1. SMP: Shared Memory or Multicore
2. HPC: High performance Computing or distribute memory
3. SIMD: Single Instruction Multiple Data
Different between Concurrency & Parallelism : logical & actual
Goal: Exa-flop = 10^18 flop/s -GPU
Top 500 Project
1. Yardstick: Linpack -> Solve $Ax=b$
Performance history and Protection
Gordon Bell Prize: Application Performance
Five paradigm: Theory & Experiment & Simulation & Data Analysis & Machine Learning
Analytics & Simulation
- 7 Giants of Data: Basic statics & Generalized N-Body & Graph-theory & Linear algebra & Optimizations & Integrations & Alignment
- 7 Dwarfs of Simulation: Monte Carlo method & Particle methods & Unstructured meshes & Dense Linear Algebra & Sparse Linear Algebra & Spectral methods & Structured Meshes
Limitation of HPC:
- Space limitation
  - Single Chip : $r < c / 10^{12}$
- 7 Giants of Data: Basic statics & Generalized N-Body & Graph-theory & Linear algebra & Optimizations & Integrations & Alignment
- 7 Dwarfs of Simulation: Monte Carlo method & Particle methods & Unstructured meshes & Dense Linear Algebra & Sparse Linear Algebra & Spectral methods & Structured Meshes.
Limitation of HPC:
- Space limitation: Single Chip: $r < c / 10^{12}$
- Heat limitation: $Power \propto V^2fC$
- V-f
Reinterpreted Moore’s law

P2: Memory Hierarchies and Matrix Multiplication

Performance programming on uniprocessors requires

Understanding of memory system
- Processor: variable, operation, control
- Mem hierarchy: On chip cache > SRAM > DRAM > DISK >Cloud
  - Temporal & Spatial locality
- Caches
- Latency & Bandwidth
Understanding of fine-grained parallelism in processor
- Pipeline
- SIMD & FMA

Simple performance models can aid in understanding

Two ratios are key to efficiency (relative to peak)

Computational intensity of the algorithm:
- q = f/m = # floating point operations / # slow memory references
Machine balance in the memory system:
- tm/tf = time for slow memory reference / time for floating point operation

Want $q > t_m/t_f$ to get half machine peak

Matrix Multiplication:
- Naive: $q=f/m=2n^3/(n^3+3n^2) \approx 2$
- Block: $q=f/m=2n^3/((2N+2)\times n^2)\approx n/N=b$

Blocking (tiling) is a basic approach to increase q

Techniques apply generally, but the details (e.g., block size) are architecture dependent
Similar techniques are possible on other data structures and algorithms
Optimize in Practice
- Matrix Storage
- Copy Optimization
- Loop Unrolling
- Removing False Dependency
- Exploit Multiple registers
- Minimize Pointer Updates

2022-07-03T09_47_08

This is my understanding of the optimization of matrix multiplication later:
Face a problem about Matrix multiplication in fast and slow memory.
First, defined the number of operations in fast and slow memory and computation intensity(CI) which is to evaluate the performance of algorithm.
Then, simplified Matrix multiplication to Matrix-Vector multiplication, and analysis this problem to get the CI=2.
After that, analysized Naive Matrix multiply and get the CI=2.
Due to Multiplication properties of partitioned matrices, she put forward Blocked(Tiled) Matrix multiply and get the CI=b(b*b is the size of partitioned matrices).
This small partitioned matrices can take advantage of cache in read and write, using SIMD in computation, thus get better performance.

P3: Cache Oblivious MatMul and the Roofline Model

Cache Oblivious MatMul

Matrix matrix multiplication
- Computational intensity O(2n^3) flops on O(3n^2) data

Tiling matrix multiplication (cache aware)

Can increase to b if b*b blocks fit in fast memory
b = sqrt(M/3), the fast memory size M
Tiling (aka blocking) “cache-aware”
Cache-oblivious - recursive

Define C = RMM (A, B, n)
if (n==1) {
    C00 = A00 * B00 ;
} else{
	C00 = RMM (A00 , B00 , n/2) + RMM (A01 , B10 , n/2)
	C01 = RMM (A00 , B01 , n/2) + RMM (A01 , B11 , n/2)
	C10 = RMM (A10 , B00 , n/2) + RMM (A11 , B10 , n/2)
	C11 = RMM (A10 , B01 , n/2) + RMM (A11 , B11 , n/2)
}
return C

$CI=f/m=2n^3/O(n^3/\sqrt{M})=O(\sqrt{M})$
Don’t need to know M for this to work!

Optimized libraries (BLAS) exist
- Flop/s: MM(BLAS3) > MV(BLAS2) -> Compute Bound
- Time: MM(BLAS3) < MV(BLAS2) -> Bandwidth Bound

Roofline Model

Roofline captures upper bound performance
- The min of 2 upper bounds for a machine
  - Peak flops (or other arith ops)
  - Memory bandwidth max
- Algorithm computational intensity
  - Usually defined as best case, infinite cache
- Machine balance：
  - Balance = (Peak DP FLOP/s) / Peak Bandwidth
- Computational / arithmetic intensity:
  - CI = FLOPs Performed / Data Moved
Originally for single processors and SPMs
- Operation FLOPs Data CI
  Dot Prod $O(n)$ $O(n)$ $O(1)$
  Mat Vec $O(n^2)$ $O(n^2)$ $O(1)$
  MatMul $O(n^3)$ $O(n^2)$ $O(n)$
  N-Body $O(n^2)$ $O(n)$ $O(n)$
  FFT $O(n\log n)$ $O(n)$ $O(\log n)$
Widely used in practice and adapted to any bandwidth/compute limit situation

Operation	FLOPs	Data	CI
Dot Prod	$O(n)$	$O(n)$	$O(1)$
Mat Vec	$O(n^2)$	$O(n^2)$	$O(1)$
MatMul	$O(n^3)$	$O(n^2)$	$O(n)$
N-Body	$O(n^2)$	$O(n)$	$O(n)$
FFT	$O(n\log n)$	$O(n)$	$O(\log n)$

HW1 MM

MM - $3b^3<M$ + Block

Z- morton

Cache-oblivious

P4: Shared Memory Parallelism

Programming shared memory machines
- May allocate data in large shared region without too many worries about where
- Memory hierarchy is critical to performance
  - Even more so than on uniprocessors, due to coherence traffic
- For performance tuning, watch sharing (both true and false)
Semantics
- Need to lock access to shared variable for read-modify-write
- Sequential consistency is the natural semantics
  - Write race-free programs to get this
- Architects worked hard to make this work
  - Caches are coherent with buses or directories
  - Cache:
    - write back: Update when evicted from cache
    - write through: Update always when wrote
  - No caching of remote data on shared address space machines
- But compiler and processor may still get in the way
  - Non-blocking writes, read prefetching, code motion…
  - Avoid races or use machine-specific fences carefully

Original Serial pi program with 100000000 steps

threads	1st SPMD	1st SPMD padded	SPMD critical	PI Loop and reduction
1	1.86	1.86	1.87	1.91
2	1.03	1.01	1.00	1.02
3	1.08	0.69	0.68	0.80
4	0.97	0.53	0.53	0.68

P5 Sources of Parallelism and Locality I & II

Outline

Discrete event systems
- Time and space are discrete
Particle systems
- Important special case of lumped systems
Lumped systems (ODEs)
- Location/entities are discrete, time is continuous
Continuous systems (PDEs)
- Time and space are continuous

Summary of Discrete Event Simulations

Approaches

Decompose domain, i.e., set of objects
Run each component ahead using
- Synchronous: communicate at end of each timestep
- Asynchronous: communicate on-demand
  - Conservative scheduling wait for inputs
    - need deadlock detection
  - Speculative scheduling assume no inputs
    - roll back if necessary

Summary of Particle Methods

Model contains discrete entities, namely, particles
Time is continuous must be discretized to solve
Simulation follows particles through timesteps
- Force = external _force + nearby_force + far_field_force
- All-pairs algorithm is simple, but inefficient, O(n2)
- Particle-mesh methods approximates by moving particles to a regular mesh, where it is easier to compute forces
- Tree-based algorithms approximate by treating set of particles as a group, when far away
May think of this as a special case of a lumped system

Summary of ODE Methods

Explicit methods for ODEs need sparse-matrix-vector mult.
Implicit methods for ODEs need to solve linear systems
Direct methods (Gaussian elimination)
- Called LU Decomposition, because we factor A = L*U.
- Future lectures will consider both dense and sparse cases.
- More complicated than sparse-matrix vector multiplication.
Iterative solvers
- Will discuss several of these in future.
  - Jacobi, Successive over-relaxation (SOR) , Conjugate Gradient (CG),
  - Multigrid,…
- Most have sparse-matrix-vector multiplication in kernel.
Eigenproblems
- Future lectures will discuss dense and sparse cases.
- Also depend on sparse-matrix-vector multiplication, direct methods.

SpMV in Compressed Sparse Row (CSR) Format

Pratitioning

Goals of Reordering

Performance goals
- balance load (how is load measured?).
  - Approx equal number of nonzeros (not necessarily rows)
- balance storage (how much does each processor store?).
  - Approx equal number of nonzeros
- minimize communication (how much is communicated?).
  - Minimize nonzeros outside diagonal blocks
  - Related optimization criterion is to move nonzeros near diagonal
- improve register and cache re-use
  - Group nonzeros in small vertical blocks so source (x) elements loaded into cache or registers may be reused (temporal locality)
  - Group nonzeros in small horizontal blocks so nearby source (x) elements in the cache may be used (spatial locality)
Other algorithms reorder rows/columns for other reasons
- Reduce # nonzeros in matrix after Gaussian elimination
- Improve numerical stability

Recap of Last Lecture

4 kinds of simulations
- Discrete Event Systems
- Particle Systems
- Ordinary Differential Equations (ODEs)
- Partial Differential Equations (PDEs) (today)
Common problems:
- Load balancing
  - May be due to lack of parallelism or poor work distribution
  - Statically, divide grid (or graph) into blocks
  - Dynamically, if load changes significantly during run
- Locality
  - Partition into large chunks with low surface-to-volume ratio
  - To minimize communication
  - Distributed particles according to location, but use irregular spatial decomposition (e.g., quad tree) for load balance
- Constant tension between these two
  - Particle-Mesh method: can’t balance particles (moving), balance mesh (fixed) and keep particles near mesh points without communication

Summary of Approaches to Solving PDEs

As with ODEs, either explicit or implicit approaches are possible
- Explicit, sparse matrix-vector multiplication
- Implicit, sparse matrix solve at each step
  - Direct solvers are hard (more on this later)
  - Iterative solves turn into sparse matrix-vector multiplication
    - Graph partitioning
Graph and sparse matrix correspondence:
- Sparse matrix-vector multiplication is nearest neighbor averaging on the underlying mesh
Not all nearest neighbor computations have the same efficiency
- Depends on the mesh structure (nonzero structure) and the number of Flops per point

Summary sources of parallelism and locality

Current attempts to categorize main kernels dominating simulation codes
Seven Dwarfs (P. Colella)
- Structured grids
  - including locally structured grids, as in AMR
- Unstructured grids
- Spectral methods (Fast Fourier Transform)
- Dense Linear Algebra
- Sparse Linear Algebra
  - Both explicit (SpMV) and implicit (solving)
- Particle Methods
- Monte Carlo/Embarrassing Parallelism/Map Reduce (easy)

P6 Communication-avoiding matrix multiplication

Outline

Communication = moving data
- Between main memory and cache
- Between processors over a network
- Most expensive operation (in time or energy)
Goal: Provably minimize communication for algorithms that look like nested loops accessing arrays
- Includes matmul, linear algebra (dense and sparse), n-body, convolutional neural nets (CNNs), …
Simple case: n-body (sequential, with main memory and cache)
- Communication lower bound and optimal algorithm
Extension to Matmul
Extension to algorithms that look like nested loops accessing arrays, like CNNs (and open questions)

Data access for n-body

A() = array of structures
- ` A(i) contains position, charge on particle i`
Usual n-body
- for i = 1:n, for j = 1:n except i, F(i) = F(i) + force(A(i),A(j))
Simplify to make counting easier
- Let B() = array of disjoint set of particles
- for i = 1:n, for j = 1:n, e = e + potential(A(i),B(j))
Simplify more
- for i = 1:n, for j = 1:n, access A(i) and B(j)

\[\text{Transfer data:}\ n^2 \sim 2n\\ \text{Cache data:}\ M^2/4 \sim M\]

Generalizing to other algorithms

Many algorithms look like nested loops accessing arrays
- Linear Algebra (dense and sparse)
- Grids (structured and unstructured)
- Convolutional Neural Nets (CNNs) …
Matmul: C = A*B
- for i=1:n, for j=1:n, for k=1:n
  - C(i,j) = C(i,j) + A(i,k) * B(k,j)

Proof of Communication Lower Bound on C = A·B (1/4)

Thm (Loomis & Whitney, 1949)
- cubes in 3D set = Volume of 3D set ≤ (area(A shadow) · area(B shadow) · area(C shadow)) 1/2
- $V\leq \sqrt{S_A \cdot S_B \cdot S_C}$
# loop iterations doable with M words of data = #cubes ≤ (area(A shadow) · area(B shadow) ·area(C shadow)) 1/2 ≤ (M · M · M) 1/2 = M 3/2 = F
Need to read/write at least M n3/ F = Ω(n3/M 1/2) = Ω(#loop iterations / M 1/2) words to/from cache
$Cost=M\cdot n^3/ F = M\cdot n^3/ M^{3/2} = n^3/M^{1/2} $

Parallel Case: apply reasoning to one processor out of P

”Fast memory” = local processor, “Slow memory” = other procs
Goal: lower bound # “reads/writes” = # words moved between
one processor and others
loop iterations = n3 / P (load balanced)
- M = 3n2 / P (each processor gets equal fraction of data)
- reads/writes M · (n3 /P) / (M)3/2 = Ω (n2 / P1/2 )
- $Cost=M\cdot (n^3/P)/ M^{3/2} = n^3/(P\cdot M^{1/2}) = n^2/ (\sqrt{3P}) \sim \Omega(n^2/p^{1/2})$

P7 An Introduction to CUDA and GPUs

What’s in a CPU?

Hardware Big Idea

Remove components that help a single instruction stream run fast
1. Discover parallelism
2. Consume energy
A larger number of (smaller simpler) cores
Share the instruction stream
1. SIMT: single instruction multiple threads
Masks

Running GPU Code (Kernel)

Allocate memory on GPU
Copy data to GPU
Execute GPU program
Wait to complete
Copy results back to CPU

float *x = new float[N];
float *y = new float[N];
//1. Allocate Memory on GPU
int size = N*sizeof(float);
float *d_x, *d_y; // device copies of x y
cudaMalloc((void **)&d_x, size);
cudaMalloc((void **)&d_y, size);
//2. Copy data to GPU
cudaMemcpy(d_x, x, size, cudaMemcpyHostToDevice);
cudaMemcpy(d_y, y, size, cudaMemcpyHostToDevice);
//3. Run kernel on GPU
add<<<1,1>>>(N, d_x, d_y);
//4. Wait to complete
//5. Copy result back to host
cudaMemcpy(y, d_y, size, cudaMemcpyDeviceToHost);

// Free memory
cudaFree(d_x); cudaFree(d_y);
delete [] x; delete [] y;

// GPU function to add two vectors
__global__
void add(int n, float *x, float *y) {
    for (int i = 0; i < n; i++)
    y[i] = x[i] + y[i];
}

Example: Vector Addition

// Run kernel on GPU
int blockSize = 256;
int numBlocks = (N + blockSize - 1) / blockSize;
add<<<numBlocks, blockSize>>>(N, x, y);

// GPU function to add two vectors
__global__
void add(int n, float *x, float *y) {
    int index = blockDim.x * blockIdx.x + threadIdx.x;
    //Works for arbitrary N and # threads / block
    int stride = gridDim.x * blockDim.x;
    for (int i = index; i < n; i+=stride)
    	y[i] = x[i] + y[i];
    }
}

Memory types on NVIDIA GPUs

Shared Mem > Local Mem » Global Mem

Hierarchical Parallelism Strategy

Use both blocks and threads
Limit on maximum number of threads/block
- Threads alone won’t work for large arrays
Fast shared memory only between threads
- Blocks alone are slower

Shared (within a block) Memory

Declare using __shared__, allocated per block
Fast on-chip memory, user-managed
Not visible to threads in other blocks

1D Stencil Example

y[i] = x[i] + x[i-2] + x[i-1] + x[i+2] + x[i+1]
Analyze
- Input elements are read several times
- Reuse of inputs:
Output
- Divide output array into blocks, each assigned to a thread block
- Each element within is assigned to a thread
- Compute blockDim.x output elements
- Write blockDim.x output elements to global memory
Input
- Cache (manually) input data in shared memory
- Have each block read (blockDim.x + 2 * radius) input elements from global memory to shared memory
- Each block needs a halo of radius elements at each boundary
  - (halos are also called ghost regions)

Code

__global__ void stencil_1d(int *in, int *out) {
    __shared__ int temp[BLOCK_SIZE + 2 * RADIUS];
    int gindex = threadIdx.x + blockIdx.x * blockDim.x;
    int lindex = threadIdx.x + RADIUS;

    // Read input elements into shared memory
    temp[lindex] = in[gindex];
    if (threadIdx.x < RADIUS) { // fill in halos
        temp[lindex - RADIUS] = in[gindex - RADIUS];
        temp[lindex + BLOCK_SIZE] = in[gindex + BLOCK_SIZE];
    }

    // Synchronize (ensure all the data is available)
	__syncthreads();//Without this line, what will happened?

    // Apply the stencil
    int result = 0;
    for (int offset = -RADIUS ; offset <= RADIUS ; offset++)
    	result += temp[lindex + offset];
    // Store the result
    out[gindex] = result;
}

Problem: Race Condition
- Suppose thread 7 (of 8) reads the halo before thread 0 has filled it in
- Synchronizes all threads within a block void __syncthreads();

Blocks must be independent

Any possible interleaving of blocks should be valid
- presumed to run to completion without pre-emption (not fairly scheduled)
- can run in any order
- can run concurrently OR sequentially
Blocks may coordinate but not synchronize
- shared queue pointer: OK
- shared lock: BAD … can easily deadlock
Independence requirement gives scalability

Mapping CUDA to Nvidia GPUs

Threads:
- Each thread is a SIMD lane (ALU)
Warps:
- A warp executed as a logical SIMD instruction (sort of)
- Warp width is 32 elements: LOGICAL SIMD width
- (Warp-level programming also possible)
Thread blocks:
- Each thread block is scheduled onto an SM
- Peak efficiency requires multiple thread blocks per processor
Kernel
- Executes on a GPU (there is also multi-GPU programming)

Summary

GPUs gain efficiency from simpler cores and more parallelism
- Very wide SIMD (SIMT) for parallel arithmetic and latency-hiding
Heterogeneous programming with manual offload
- CPU to run OS, etc. GPU for compute
Massive (mostly data) parallelism required
- Not as strict as CPU-SIM (divergent addresses, instructions)
Threads in block share faster memory and barriers
- Blocks in kernel share slow device memory and atomics

P8: Data Parallel Algorithms (aka, tricks with trees)

The Power of Data Parallelism

Data parallelism: perform the same operation on multiple values (often array elements)
Many parallel programming models use some data parallelism
- SIMD units (and previously SIMD supercomputers)
- CUDA / GPUs
- MapReduce
- MPI collectives

Data Parallel Programming: Scans

Scan is always use for non-obvious algorithm

Ideal Cost Model for Data Parallelism

Machine
- An unbounded number of processors (p)
- Control overhead is free
- Communication is free
Cost (complexity) on this abstract machine is the algorithm’s span or depth, T∞
- Defines a lower bound on time on real machines\

Broadcast and reduction on processor tree

$\log(n)$ is the lower bound!

Multiplying n-by-n matrices in O(log n) time

for $n^2$ parallel c[i][j]
- each tree depth = $\log(n)$
- $O(\log n)$

Can we parallelize a scan?

y(0) = 0;
for i = 1:n
	y(i) = y(i-1) + x(i);

Takes n-1 operations (adds) to do in serial
The i th iteration of the loop depends completely on the (i-1) st iteration.

Sum Scan (aka prefix sum) in parallel

Time for this algorithm on one processor (work)
- $T_1(n) = n/2 + n/2 + T1 (n/2) = n + T1 (n/2) = 2n 1$
Time on unbounded number of processors (span)
- $T_{\infty}(n) = 2 \log n$

Non-recursive exclusive scan

This is both work-efficient (n adds) and space-efficient (update in place)

Application: Stream Compression

Remove matching elements
- int find (int x, int y) (y % x == 0) ? 1 : 0;
- flags = apply(values, find)

Application: Radix Sort (serial algorithm)

$n = [Bit_2, Bit_1, Bit_0]$

List Ranking with Pointer Doubling

==?? Why put a processor at every node==

val = 1;
for(int i=0; i<log(n); i++){
	while (next != null){
        val += next.val
        next = next.next
	}
    __syncthreads();
}

Application: Adding n-bit integers in O(log n) time

c[-1] = 0;
for i = 0 to n-1
	c[i] = ( (a[i] xor b[i]) and c[i-1] ) or ( a[i] and b[i] )

Lexical analysis

Replace every character in the string with the array representation of its state-to-state function (column).
Perform a parallel-prefix operation with $\oplus$ as the array composition. Each character becomes an array representing the state-to-state function for that prefix.
Use initial state (N, row 1) to index into these arrays.

Inverting triangular n-by-n matrices

Recursive !

Mapping to GPUs

For n-way parallelism may use n threads, divided into blocks
Merge across statements (so A=B; C=A; is a single kernel)
Mapping threads to ALUs and blocks to SMs is compiler / hardware problem

Bottom Line

Branches are still expensive on GPUs
May pad with zeros / nulls etc. to get length
Often write code with a guard (if i < n), which will turn into mask fine if n is large
Non-contiguous memory is supported, but will still have a higher cost
Enough parallelism to keep ALUs busy and hide latency, memory/scheduling tradeoff

Mapping Data Parallelism to SMPs (and MPPs)

$T_p(n) = O(n/p+\log p)$

The myth of log n

Summary of Data Parallelism

Sequential semantics (or nearly) is very nice
- Debugging is much easier without non-determinism
- Correctness easier to reason about
Cost model is independent of number of processors
- How much inherent parallelism
Need to “throttle” parallelism
- n » p can be hard to map, especially with nesting
- Memory use is a problem
More reading
- Classic paper by Hillis and Steele “Data Parallel Algorithms”
- https://doi.org/10.1145/7902.7903 and on Youtube
- Blelloch the NESL languages and “NESL Revisited paper, 2006

P9 Distributed Memory Machines and Programming

Outline

Distributed Memory Architectures
- Properties of communication networks
- Topologies
- Performance models
Programming Distributed Memory Machines using Message Passing
- Overview of MPI
- Basic send/receive use
- Non-blocking communication
- Collectives

Design Characteristics of a Network

Topology (how things are connected)
- Crossbar; ring; 2-D, 3-D, higher-D mesh or torus; hypercube; tree; butterfly; perfect shuffle, dragon fly, …
Routing algorithm:
- Example in 2D torus: all east-west then all north-south (avoids deadlock).
Switching strategy:
- Circuit switching: full path reserved for entire message, like the telephone.
- Packet switching: message broken into separately-routed packets, like the post office, or internet
Flow control (what if there is congestion):
- Stall, store data temporarily in buffers, re-route data to other nodes, tell source node to temporarily halt, discard, etc.

Observations:

Latencies differ by 1-2 orders across network designs
Software/hardware overhead at source/destination dominate
cost (1s-10s usecs)
Hardware latency varies with distance (10s-100s nsec per hop)
but is small compared to overheads

Latency has not improved significantly, unlike Moore’ s Law

Performance Properties of a Network: Bisection Bandwidth

Bisection bandwidth: bandwidth across smallest cut that divides network into two equal halves
Bandwidth across “narrowest” part of the network

Linear and Ring Topologies

Linear array
- Diameter = n-1; average distance ~n/3.
- Bisection bandwidth = 1 (in units of link bandwidth)
Torus or Ring
- Diameter = n/2; average distance ~ n/4.
- Bisection bandwidth = 2

Meshes and Tori – used in Hopper

Hypercubes

Trees

Butterflies

Dragonflies – used in Edison and Cori

Motivation: Exploit gap in cost and performance between optical interconnects (which go between cabinets in a machine room) and electrical networks (inside cabinet)
- Optical (fiber) more expensive but higher bandwidth when long
- Electrical (copper) networks cheaper, faster when short
Combine in hierarchy:
- Several groups are connected together using all to all links, i.e. each group has at least one link directly to each other group.
- The topology inside each group can be any topology.
Uses a randomized routing algorithm
Outcome: programmer can (usually) ignore topology, get good performance
- Important in virtualized, dynamic environment
- Drawback: variable performance

Why randomized routing?

Shared Memory Performance Models

Often called “$\alpha-\beta$ model” and written
- $ Time= latency + n/bandwidth=\alpha+n\times\beta$

Programming Distributed Memory Machines with Message Passing

MPI Basic Send/Receive

MPI Basic (Blocking) Send

MPI_Send( A, 10, MPI_DOUBLE, 1, … )
MPI_Recv( B, 20, MPI_DOUBLE, 0, … )

MPI_SEND(start, count, datatype, dest, tag, comm)
- The message buffer is described by (start, count, datatype).
- The target process is specified by dest, which is the rank of the target process in the communicator specified by comm.
- When this function returns, the data has been delivered to the system and the buffer can be reused. The message may not have been received by the target process.
MPI_RECV(start, count, datatype, source, tag, comm, status)
- Waits until a matching (both source and tag) message is received from the system, and the buffer can be used
- source is rank in communicator specified by comm, or MPI_ANY_SOURCE
- tag is a tag to be matched or MPI_ANY_TAG
- receiving fewer than count occurrences of datatype is OK, but receiving more is an error
- status contains further information (e.g. size of message)

PI redux: Numerical integration

#include "mpi.h”
#include <math.h>
#include <stdio.h>
int main(int argc, char *argv[])
{
    int done = 0, n, myid, numprocs, i, rc;
    double PI25DT = 3.141592653589793238462643;
    double mypi, pi, h, sum, x, a;
    MPI_Init(&argc,&argv);
    MPI_Comm_size(MPI_COMM_WORLD,&numprocs);
    MPI_Comm_rank(MPI_COMM_WORLD,&myid);
    while (!done) {
        if (myid == 0) {
        printf("Enter the number of intervals: (0 quits) ");
        scanf("%d",&n);
    }

    MPI_Bcast(&n, 1, MPI_INT, 0, MPI_COMM_WORLD);
    if (n == 0) break;

    h = 1.0 / (double) n;
    sum = 0.0;
    for (i = myid + 1; i <= n; i += numprocs) {
    	x = h * ((double)i - 0.5);
    	sum += 4.0 * sqrt(1.0 - x*x);
    }

    mypi = h * sum;
    MPI_Reduce(&mypi, &pi, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD);
    if (myid == 0)
        printf("pi is approximately %.16f, Error is %.16f\n",
               pi, fabs(pi - PI25DT));
    }

    MPI_Finalize();
    return 0;
}

#apt install mpich
mpicc -o pi pi.c
mpirun -np 6 ./pi

Buffers

Avoiding Buffering
- Avoiding copies uses less memory
- May use more or less time
This requires that MPI_Send wait on delivery, or that MPI_Send return before transfer is complete, and we wait later

MPI’s Non-blocking Operations

Non-blocking operations return (immediately) “request handles” that can be tested and waited on:
- MPI_Request request;
- MPI_Status status;
- MPI_Isend(start, count, datatype, dest, tag, comm, &request);
- MPI_Irecv(start, count, datatype, dest, tag, comm, &request);
- MPI_Wait(&request, &status);
- (each request must be Waited on)
One can also test without waiting:
- MPI_Test(&request, &flag, &status);
Accessing the data buffer without waiting is undefined

P10: Advanced MPI and Collective Communication Algorithms

SUMMA

`MPI_Comm_split`

int MPI_Comm_split( MPI_Comm comm,
                    int color,
                    int key,
                    MPI_Comm *newcomm)

MPI’s internal Algorithm:

Use MPI_Allgather to get the color and key from each process
Count the number of processes with the same color; create a communicator with that many processes. If this process has MPI_UNDEFINED as the color, create a process with a single member.
Use key to order the ranks
- Color: controls assignment to new communicator
- Key: controls rank assignment within new communicator

How are collectives implemented in MPI?

Example: MPI_AllReduce
- All processes must receive the same result vector;
- Reduction must be performed in canonical order m0 + m1 ··· + mp−1 (if the operation is not commutative);
- The same reduction order and bracketing for all elements of the result vector is not strictly required, but should be strived for.

AllGather

$T_{ring}=\alpha(p-1)+\beta n(p-1)/p\\ \rightarrow T_{rec-dbl}=\alpha\log(p)+\beta n(p-1)/p$

The Bruck Algorithm

$T_{brock}=\lceil \alpha\log(p) \rceil+\beta n(p-1)/p$

Nonblocking Collective Communication

Semantic advantages:

Enable asynchronous progression (and manual)
- Software pipelining
Decouple data transfer and synchronization
- Noise resiliency!
Allow overlapping communicators
- See also neighborhood collectives
Multiple outstanding operations at any time
- Enables pipelining window

Hybrid Programming with Threads

Programming for Multicore

Common options for programming multicore clusters

All MPI
- MPI between processes both within a node and across nodes
- MPI internally uses shared memory to communicate within a node
MPI + OpenMP
- Use OpenMP within a node and MPI across nodes
MPI + Pthreads
- Use Pthreads within a node and MPI across nodes
The latter two approaches are known as “hybrid programming”

MPI’s Four Levels of Thread Safety

MPI defines four levels of thread safety – these are commitments the application makes to the MPI
MPI_THREAD_SINGLE: only one thread exists in the application
MPI_THREAD_FUNNELED: multithreaded, but only the main thread makes MPI calls (the one that called MPI_Init_thread)
MPI_THREAD_SERIALIZED: multithreaded, but only one thread at a time makes MPI calls
MPI_THREAD_MULTIPLE: multithreaded and any thread can make MPI calls at any time (with some restrictions to avoid races – see next slide)
Thread levels are in increasing order
- If an application works in FUNNELED mode, it can work in SERIALIZED
MPI defines an alternative to MPI_Init
- MPI_Init_thread(requested, provided)
  - Application gives level it needs; MPI implementation gives level it supports

`MPI_THREAD_FUNNELED`

All MPI calls are made by the master thread

Outside the OpenMP parallel regions
In OpenMP master regions

int main(int argc, char ** argv)
{
    int buf[100], provided;
    MPI_Init_thread(&argc, &argv, MPI_THREAD_FUNNELED,
                    &provided);
    if (provided < MPI_THREAD_FUNNELED)
    	MPI_Abort(MPI_COMM_WORLD, 1);

    #pragma omp parallel for
    for (i = 0; i < 100; i++)
    	compute(buf[i]);
    /* Do MPI stuff */
    MPI_Finalize();
    return 0;
}

`MPI_THREAD_SERIALIZED`

Only one thread can make MPI calls at a time

Protected by OpenMP critical regions

int main(int argc, char ** argv)
{
    int buf[100], provided;
    MPI_Init_thread(&argc, &argv, MPI_THREAD_SERIALIZED,
                    &provided);
    if (provided < MPI_THREAD_SERIALIZED)
    	MPI_Abort(MPI_COMM_WORLD, 1);

    #pragma omp parallel for
    for (i = 0; i < 100; i++) {
    	compute(buf[i]);
    	#pragma omp critical
    	/* Do MPI stuff */
    }
    MPI_Finalize();
    return 0;
}

MPI_THREAD_MULTIPLE

Any thread can make MPI calls any time (w/ restrictions)

int main(int argc, char ** argv)
{
    int buf[100], provided;
    MPI_Init_thread(&argc, &argv, MPI_THREAD_MULTIPLE,
                    &provided);
    if (provided < MPI_THREAD_MULTIPLE)
    	MPI_Abort(MPI_COMM_WORLD, 1);
    #pragma omp parallel for
    for (i = 0; i < 100; i++) {
        compute(buf[i]);
        /* Do MPI stuff */
    }
    MPI_Finalize();
    return 0;
}

Threads and MPI

An implementation is not required to support levels higher than MPI_THREAD_SINGLE; that is, an implementation is not required to be thread safe
A fully thread-safe implementation will support MPI_THREAD_MULTIPLE
A program that calls MPI_Init (instead of MPI_Init_thread) should assume that only MPI_THREAD_SINGLE is supported
A threaded MPI program that does not call MPI_Init_thread is an incorrect program (common user error we see)
The user has to make sure that one thread is not using an object while another thread is freeing it
- This is an ordering issue; the object might get freed before it is used

One-sided Communication

One-sided Communication Example

Creating Public Memory

Any memory used by a process is, by default, only locally accessible
- X = malloc(100);
Once the memory is allocated, the user has to make an explicit MPI call to declare a memory region as remotely accessible
- MPI terminology for remotely accessible memory is a “window”
- A group of processes collectively create a “window”
Once a memory region is declared as remotely accessible, all processes in the window can read/write data to this memory without explicitly synchronizing with the target process

Window creation models

Four models exist
MPI_WIN_CREATE
- You already have an allocated buffer that you would like to make remotely accessible
MPI_WIN_ALLOCATE
- You want to create a buffer and directly make it remotely accessible
MPI_WIN_CREATE_DYNAMIC
- You don’t have a buffer yet, but will have one in the future
- You may want to dynamically add/remove buffers to/from the window
MPI_WIN_ALLOCATE_SHARED
- You want multiple processes on the same node share a buffer

`MPI_WIN_ALLOCATE`

int MPI_Win_allocate(MPI_Aint size, int disp_unit,
	MPI_Info info, MPI_Comm comm, void *baseptr,
	MPI_Win *win)

Arguments:
size - size of local data in bytes (nonnegative integer)
disp_unit - local unit size for displacements, in bytes (positive integer)
info - info argument (handle)
comm - communicator (handle)
baseptr - pointer to exposed local data
win - window (handle)

int MPI_Win_create_dynamic(MPI_Info info, MPI_Comm comm,
	MPI_Win *win)

Create an RMA window, to which data can later be attached
- Only data exposed in a window can be accessed with RMA ops
Initially “empty”
- Application can dynamically attach/detach memory to this window by calling MPI_Win_attach/detach
- Application can access data on this window only after a memory region has been attached
Window origin is MPI_BOTTOM
- Displacements are segment addresses relative to MPI_BOTTOM
- Must tell others the displacement after calling attach

int main(int argc, char ** argv)
{
    int *a; MPI_Win win;
    MPI_Init(&argc, &argv);
    MPI_Win_create_dynamic(MPI_INFO_NULL, MPI_COMM_WORLD, &win);
    /* create private memory */
    a = (int *) malloc(1000 * sizeof(int));
    /* use private memory like you normally would */
    a[0] = 1; a[1] = 2;
    /* locally declare memory as remotely accessible */
    MPI_Win_attach(win, a, 1000*sizeof(int));
    /* Array 'a' is now accessible from all processes */
    /* undeclare remotely accessible memory */
    MPI_Win_detach(win, a); free(a);
    MPI_Win_free(&win);
    MPI_Finalize(); return 0;
}

Data movement: Put

RMA Synchronization Models

RMA data access model
- When is a process allowed to read/write remotely accessible memory?
- When is data written by process X is available for process Y to read?
- RMA synchronization models define these semantics
Three synchronization models provided by MPI:
- Fence (active target)
- Post-start-complete-wait (generalized active target)
- Lock/Unlock (passive target)
Data accesses occur within “epochs”
- Access epochs: contain a set of operations issued by an origin process
- Exposure epochs: enable remote processes to update a target’s window
- Epochs define ordering and completion semantics
- Synchronization models provide mechanisms for establishing epochs
  - E.g., starting, ending, and synchronizing epochs

11: UPC++: Partitioned Global Address Space Languages

Some motivating applications

Many applications involve asynchronous updates to irregular data structures
- Adaptive meshes
- Sparse matrices
- Hash tables and histograms
- Graph analytics
- Dynamic work queues
Irregular and unpredictable data movement:
- Space: Pattern across processors
- Time: When data moves
- Volume: Size of data

Some motivating system trends

The first exascale systems will appear in 2021

Cores per node is growing
Cores are getting simpler (including GPU cores)
Memory per core is dropping
Latency is not improving

Need to reduce communication costs in software

Overlap communication to hide latency
Reduce memory using smaller, more frequent messages
Minimize software overhead
Use simple messaging protocols (RDMA)

Parallel Machines and Programming

Memory access time depends on size and whether local vs. remote
Key PGAS “feature”: never cache remote data

Advantages and disadvantages of each

Shared memory / OpenMP
- +Ease: Easier to parallelize existing serial code
- Correctness: Race conditions
- Scalability: No locality control; cache coherence doesn’t scale
- Performance: False sharing, lack of parallelism, etc.
Message Passing / two-sided MPI
- Ease: More work up front to partition data
- +Correctness: Harder to create races (although deadlocks can still be a problem)
- +Scalability: Effectively unlimited
- +Performance: More transparent, but messages are expensive (need to pack/unpack)

PGAS = Partitioned Global Address Space

Global address space: thread may directly read/write remote data
- Convenience of shared memory
Partitioned: data is designated as local or global
- Locality and scalability of message passing

Shared mem: Physically Partition + Logically Continue
Need a way to name remote memory (UPC syntax)
- Global pointers: shared int * p = upc_malloc(4);
- Distributed arrays: shared int a [12];
Directly read/write remote memory; partitioned for locality
- One-sided communication underneath (UPC syntax):
- Put: a[i] = … ; *p = ...; upc_mem_put(..)
- Get: ... = a[i]...; ... = *p; upc_mem_get(...)

Global vs raw pointers and affinity

The affinity identifies the process that created the object
Global pointer carries both an address and the affinity for the data
Raw C++ pointers can be used on a process to refer to objects in the global address space that have affinity to that process
- P0: g->val == l->next->val

What does UPC++ offer?

Asynchronous behavior
- RMA: Remote Memory Access
  - Get/put to a remote location in another address space
  - Low overhead, zero-copy, one-sided communication.
- RPC: Remote Procedure Call:
  - Moves computation to the data
Design principles for performance
- All communication is syntactically explicit
- All communication is asynchronous: futures and promises
- Scalable data structures that avoid unnecessary replication

Example: Monte Carlo Pi Calculation

Estimate Pi by throwing darts at a unit square
Calculate percentage that fall in the unit circle
- Area of square = r2 = 1
- Area of circle quadrant = $1/4\times\pi r^2=\pi/4$
Randomly throw darts at x,y positions
If x2 + y2 < 1, then point is inside circle
Compute ratio:
- points inside / # points total
- $\pi$ = 4*ratio

Independent estimates of pi:

Private vs. Shared Memory in UPC++

global_ptr gptr = new_(rank_me());
To write an interesting program, we need to have global pointers refer to remote data
One approach is to broadcast the pointer

Asynchronous remote operations

Asynchronous execution used to hide remote latency
Asynchronous get: start reading, but how to tell if you’re done?
- Put the results into a special “box” called a future

UPC++ Synchronization

UPC++ has two basic forms of barriers:
1) Synchronous Barrier: block until all other threads arrive (usual) barrier(); 1) Asynchronous barriers C++ future<> f = barrier_async(); // this thread is ready for barrier // do computation unrelated to barrier wait(f); // wait for others to be ready
Reminder: slides elide the upcxx:: that precedes these

Pi in UPC++: Shared Memory Style

Race condition: int old_hits = rget(hits).wait();

Downcasting global pointers

If a process has direct load/store access to the memory referenced by a global pointer, it can downcast the global pointer into a raw pointer with local() ```C++ global_ptr grid_pptr; double *grid;

void make_grid(size_t N) { grid_gptr = new_array(N); grid = grid_gptr.local();//Downcasting }

- Downcasting can be used to optimize for co-located processes
  that share physical memory

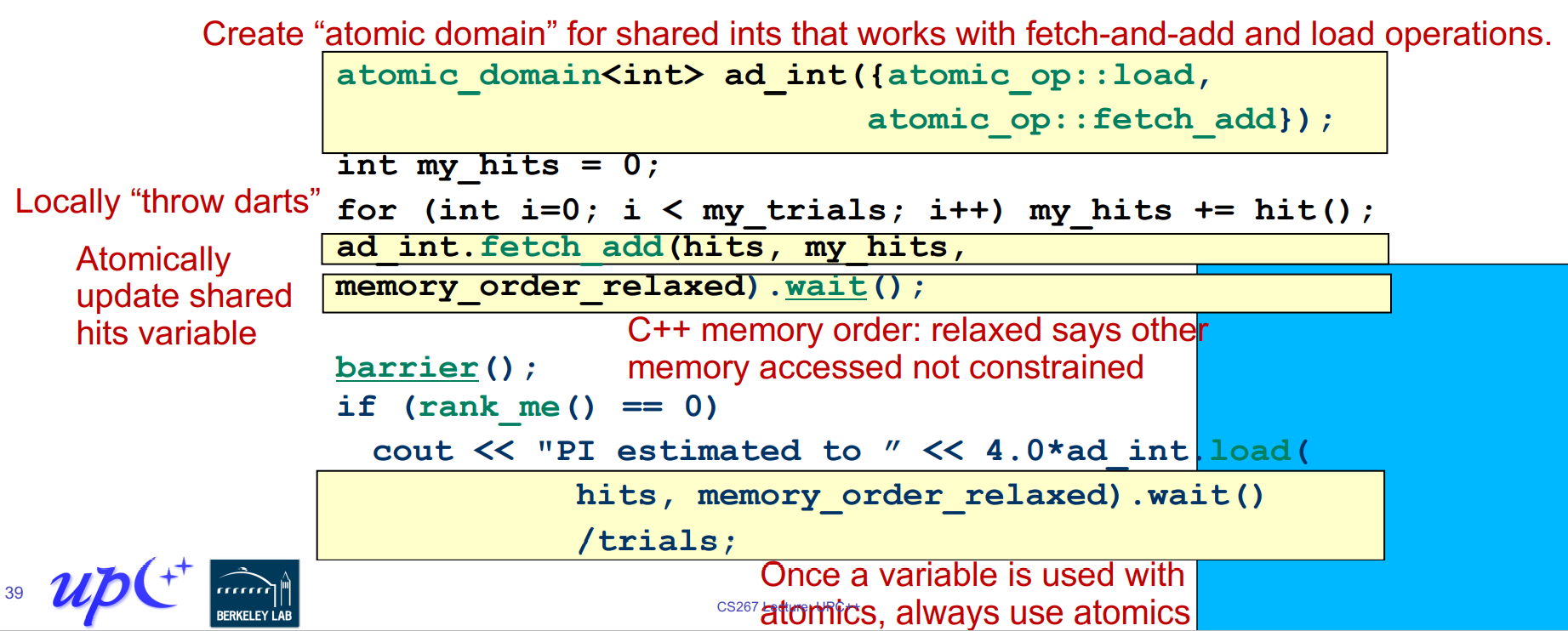

### Atomics in UPC++

- Atomics are indivisible read-modify-write operations
- As if you put a lock around each operation, but may have  hardware support (e.g., within the network interface)

![image-20221019215028713](../images/CS267 Note.assets/image-20221019215028713.png)

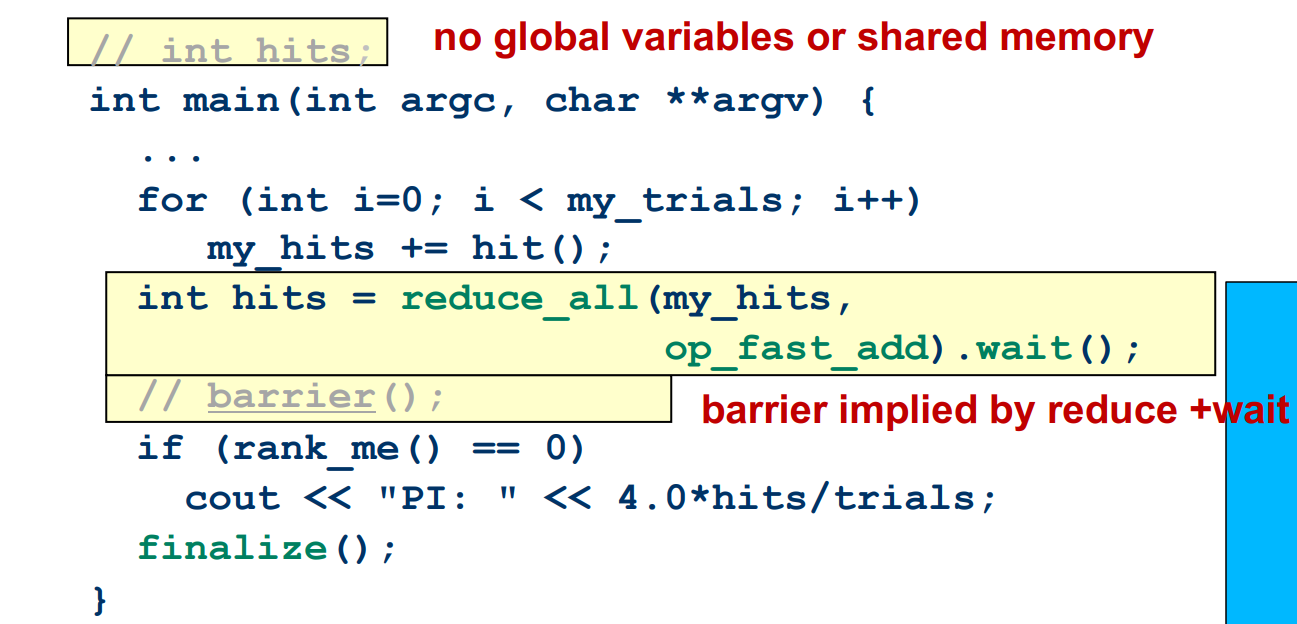

### Pi in UPC++: Data Parallel Style w/ Collectives

- The previous version of Pi works, but is not scalable:
  - Updates are serialized on rank 0, ranks block on updates
- Use a reduction for better scalability:

![image-20221019215114556](../images/CS267 Note.assets/image-20221019215114556.png)

```C++
#include <iostream>
#include <random>
#include <upcxx/upcxx.hpp>
default_random_engine generator;
uniform_real_distribution<> dist(0.0, 1.0);
using namespace upcxx
int hit() {
    double x = dist(generator);
    double y = dist(generator);
    if (x*x + y*y <= 1.0) {
        return 1;
    } else {
        return 0;
    }
}

int main(int argc, char **argv) {
    init();
    int trials = atoi(argv[1]);
    int my_trials = (trials+rank_me())/rank_n();
    global_ptr<int> hits = broadcast(new_<int>(0), 0)).wait();
    generator.seed(rank_me()*17);

    int my_hits = 0;
    for (int i=0; i < my_trials; i++)
    	my_hits += hit();

    int hits = reduce_all(my_hits, op_fast_add).wait();
    // barrier();
    if (rank_me() == 0)
    	cout << "PI: " << 4.0*hits/trials;
    finalize();
}

Remote procedure call (RPC)

Execute a function on another process, sending arguments and returning an optional result
- 1.Initiator injects the RPC to the target process
- 2.Target process executes fn(arg1, arg2) at some later time determined at the target
- 3.Result becomes available to the initiator via the future
Many RPCs can be active simultaneously, hiding latency

Pi in UPC++: RPC

Chaining callbacks

Conjoining futures

Distributed objects

A distributed object is an object that is partitioned over a set of processes
- dist_object<T>(T value, team &team = world());
The processes share a universal name for the object, but each has its own local value
Similar in concept to a co-array, but with advantages
- No communication to set up or tear down
- Scalable metadata representation
- Does not require a symmetric heap
- Can be constructed over teams

Pi with a distributed object

A distributed object can be used to store the results from each process

Distributed hash table (DHT)

Distributed analog of std::unordered_map
- Supports insertion and lookup
- We will assume the key and value types are string
- Represented as a collection of individual unordered maps across processes
- We use RPC to move hash-table operations to the owner

DHT data representation

A distributed object represents the directory of unordered maps

class DistrMap {
	using dobj_map_t = dist_object<unordered_map<string, string>>;
    // Construct empty map
    dobj_map_t local_map;

    //Computes owner for the given key
    int get_target_rank(const string &key) {
    	return std::hash<string>{}(key) % rank_n();
    }
};

DHT insertion

Insertion initiates an RPC to the owner and returns a future that represents completion of the insert

future<> insert(const string &key, const string &val) {
    return rpc( get_target_rank(key),
			[](dobj_map_t &lmap, const string &key, const string &val)
				{ (*lmap)[key] = val; },
			local_map, key, val);
}

RPC and progress

Review: high-level overview of an RPC’s execution
- 1.Initiator injects the RPC to the target process
- 2.Target process executes fn(arg1, arg2) at some later time determined at target
- 3.Result becomes available to the initiator via the future
Progress is what ensures that the RPC is eventually executed at the target

Progress

UPC++ does not spawn hidden threads to advance its internal state or track asynchronous communication
This design decision keeps the runtime lightweight and simplifies synchronization
- RPCs are run in series on the main thread at the target process, avoiding the need for explicit synchronization
The runtime relies on the application to invoke a progress function to process incoming RPCs and invoke callbacks
Two levels of progress
- Internal: advances UPC++ internal state but no notification
- User: also notifies the application
- Readying futures, running callbacks, invoking inbound RPCs

Serialization

Views

UPC++ views permit optimized handling of collections in RPCs, without making unnecessary copies
- ` view`: non-owning sequence of elements
When deserialized by an RPC, the view elements can be accessed directly from the internal network buffer, rather than constructing a container at the target

Shared memory hierarchy and `local_team`

Memory systems on supercomputers are hierarchical
- Some process pairs are “closer” than others
- Ex: cabinet > switch > node > NUMA domain > socket > core
Traditional PGAS model is a “flat” two-level hierarchy
- “same process” vs “everything else”
UPC++ adds an intermediate hierarchy level
- local_team() – a team corresponding to a physical node
- These processes share a physical memory domain
  - Shared segments are CPU load/store accessible across the same local_team

Downcasting and shared-memory bypass

Earlier we covered downcasting global pointers
- Converting global_ptr<T> from this process to raw C++ T*
- Also works for global_ptr<T> from any process in local_team()

Optimizing for shared memory in many-core

local_team() allows optimizing co-located processes for physically
shared memory in two major ways:
Memory scalability
- Need only one copy per node for replicated data
- E.g. Cori KNL has 272 hardware threads/node
Load/store bypass – avoid explicit communication overhead for RMA on local shared memory
- Downcast global_ptr to raw C++ pointer
- Avoid extra data copies and communication overheads

12: Special Lecture

12a: Parallel Algorithms for De Novo Genome Assembly

12b: Communication-Avoiding Graph Neural Networks

What are graphs?

Stores connections (edges) between entities (vertices/nodes)

Why not use CNNs?

Why not use CNNs?

GNN basics

GNN training basics

Initialize feature vectors in layer 0
Sum neighbors’ vectors for each vertex
Apply weight to vector sums

GNN issues

GNN models are huge: $O(nfl)$
- $n$ : number of vertices
- $f$ : length of feature vector
- $L$ : number of layers
Need to distribute GNN training + inference

Why not use mini-batch SGD?

Layered dependencies -> space issue persists
Focus on full-batch gradient descent

How do we distribute GNN training?

Formulate GNN training with sparse-dense matrix multiplication operations
- Both forward and back propagation
Distribute with distributed sparse-dense matrix multiplication algorithms
- Focus on node classification, but methods are general

GNN training as sparse-dense matrix multiplication

Forward Propagation:

$\mathbf{Z}^l \leftarrow \mathbf{A}^T\mathbf{H}^{l-1}\mathbf{W}^l$ <- SpMM, DGEMM
$\mathbf{H}^l \leftarrow \sigma(\mathbf{Z}^l)$ <- In paper

Backward Propagation:

$\mathbf{G}^{l-1} \leftarrow \mathbf{A G}^l\left(\mathbf{W}^l\right)^{T} \odot \sigma^{\prime}\left(\mathbf{Z}^{l-1}\right) $ <- SpMM, DGEMM
$\mathbf{Y}^{l-1} \leftarrow\left(\mathbf{H}^{l-1}\right)^{T} \mathbf{A} \mathbf{G}^l$ <- DGEMM

Bottleneck of GNN training

SpMM »> DGEMM

GNN training communication analysis

$nnz(\mathbf{A})$ is the number of edges
$c$ is the replication factor for 1.5D ($c=1$ is 1D, $c=P^{1/3}$, is 3D)

GNN Training with 2D/3D Matrix Multiplication

Other algorithms evaluated in practice (with 6GPUs/node)
Communication scales with $P$, consistent with analysis
Computation scales less well à explained in paper

12c: Distributed Computing with Ray and NumS

What is Ray?

Ray provides a Task parallel API and actor API built on dynamic task graphs

Ray Architecture

The Ray API

Actor Handles

NumS:

The Problem

NumS aims to make terabyte-scale data modeling easier for the Python scientific computing community.
We have an abundance of very fast compute devices and libraries to manage parallelism among these devices.
However, existing libraries expect the Python scientific computing community to learn advanced parallel computing concepts and algorithms to make use of these devices, an uncommon skill among Python users.
What can be done to make numerical computing at these scales accessible to Python programmers?
